Skoda Fabia: Measurement of fuel consumption and CO2 emissions according to ECE Regulations and EU Directives

Skoda Fabia Owners Manual

Skoda Fabia / Skoda Fabia Owners Manual / Technical data / Measurement of fuel consumption and CO2 emissions according to ECE Regulations and EU Directives

The data on fuel consumption and CO 2 emissions were not available at the time of going to press.

The data on fuel consumption and CO 2 emissions are given on the ŠKODA websites or in the sales and technical vehicle documentation.

The measurement of the intra-urban cycle begins with a cold start of the engine.

Afterwards urban driving is simulated.

In the extra-urban driving cycle, the vehicle is accelerated and decelerated in all gears, corresponding to daily routine driving conditions. The driving speed varies between 0 and 120 km/h.

The calculation of the combined fuel consumption considers a weighting of about 37 % for the intra-urban cycle and 63 % for the extra-urban cycle.

Note

  • The fuel consumption and emission levels given on the Škoda websites or in the commercial and technical vehicle documentation have been established in accordance with rules and under conditions that are set out by legal or technical rules for the determination of operational and technical data of motor vehicles.
  • Depending on the extent of the equipment, the driving style, traffic conditions, weather influences and vehicle condition, consumption values can in practice result in fuel economy figures in the use of the vehicle that differ from the fuel consumption values listed on the ŠKODA websites or in the commercial and technical vehicle documentation.

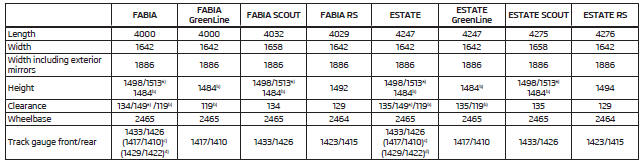

Dimensions

Dimensions


a) The value corresponds to the status with the rough road package.

b) The value corresponds to the status with the sport chassis.

c) Applies to cars fitted with the 1.2 l/77 kW TSI and 1.6 l/77 kW TDI CR engines and 15" wheels.

d) Applies to cars fitted with the 1.6 l/77 kW MPI, 1.6 l/55 kW TDI CR and 1.6 l/66 kW TDI CR engines and 14" wheels.

    Operating weight and payload

    Vehicle-specific details according to engine type
